Haldex is both an industry pioneer and market leader in air brake actuators. Many of the designs and features you have come to expect are Haldex innovations. Haldex offers a complete family of actuators designed and built to the same high standards. The GoldSeal family includes 13 different sizes ranging from the popular 3030 2.5 stroke to the 1624 2.25 stroke and 3636 3.0 stroke. The only truly sealed double diaphragm spring brake on the Market. Ice melts, rain dries, but corrosion never takes a day off. In time, water, de-icers, oils and other elements eat away at your actuators. LifeSeal+ (R) 2.5 and 3.0 stroke models are engineered smart, built strong, and road-tested tough for dependable, durable performance that outlasts ordinary spring brakes.

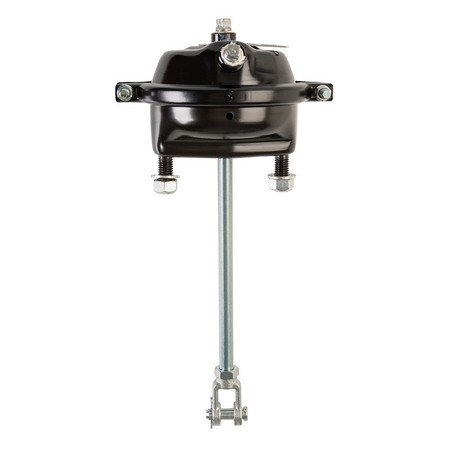

- Anchorlok(R) Spring Brake , Model Types 2030-XLS, 24S, 24S-LS, 2424, 2424-LS, 2430, 2430-LS and 2430-XLS Service Side , 1624, 2024 and 2424 Emergency, T-24 Clamp Band Assembly
| Air Port position | 90 |
|---|---|
| Air Port Threads | 3/8-18 NPTF |
| Available Stroke | 2.5 in |
| Available Stroke | 64 mm |
| Dimension at Service Clampband | 218 mm |
| Dimension at Service Clampband | 8.6 in |
| Length from mounting bracket to end of Spring Housing | 4.2 in |
| Length from mounting bracket to end of Spring Housing | 107 mm |
| Maximum Pressure | 150 PSI |
| Pushrod Length from face of Service Housing | 10 in |
| Replaces | MA36202 |
| Service Clampband position | 0 |
| Stud Spacing | 120.7 mm |
| Stud Spacing | 4.75 in |
| Prop 65 Applies | Y |
| Prop 65 Short Warning | Cancer & Reproductive |
| Weight | 8.4 lbs |
|---|---|
| Manufacturer |
