SERVICE CHAMBER / 3 STROKE
- EUCLID INDUSTRIES EBC24SEL equivalent
- ALLIANCE TRUCK PARTS ABP N42A 24SC3ND equivalent
- HALDEX MA36242 equivalent
- Haldex 127240215 equivalent
- Haldex S127240004 equivalent
- Haldex S127240005 equivalent
44 more numbers
- Haldex S127240011 equivalent
- Haldex S127240012 equivalent
- Haldex S127240020 equivalent
- Haldex S127240021 equivalent
- Haldex S127240022 equivalent
- Haldex S127240023 equivalent
- Midland 127240301 equivalent
- Bendix K046181 equivalent
- Anchorloc 127240005 equivalent
- Anchorloc 127240008 equivalent
- Anchorloc 127240009 equivalent
- Anchorloc 127240020 equivalent
- Anchorloc 127240021 equivalent
- Anchorloc 127240022 equivalent
- Anchorloc 127240023 equivalent
- Anchorloc 127240036 equivalent
- Anchorloc 127240038 equivalent
- Anchorloc 127240039 equivalent
- Anchorloc 127240043 equivalent
- Anchorloc 127240044 equivalent
- Anchorloc 127240047 equivalent
- Anchorloc 127240302 equivalent
- Anchorloc 127240304 equivalent
- Anchorloc 127240306 equivalent
- Anchorloc 127240307 equivalent
- Anchorloc 127240308 equivalent
- Anchorloc 127240309 equivalent
- Anchorloc 127240310 equivalent
- Anchorloc 127240311 equivalent
- Anchorloc 127240313 equivalent
- Anchorloc MA36242 equivalent
- Daimler Truck North America HDX127240020 equivalent
- Daimler Truck North America HDX127240021 equivalent
- Daimler Truck North America HDX127240022 equivalent
- Daimler Truck North America HDX127240023 equivalent
- Volvo 24424192 equivalent
- Hendrickson 011239 equivalent
- Hendrickson 98832-064 equivalent
- Hendrickson 98832-072 equivalent
- Thomas Built Buses 61170332 equivalent
- Thomas Built Buses 61170333 equivalent
- Mack 19QE4135 equivalent
- Freightliner HDX127240020 equivalent
- Freightliner HDX127240021 equivalent
$78.40

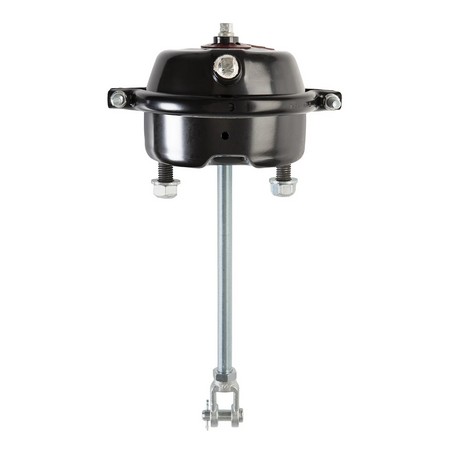

Service Chamber - Extra Long Stroke - Size T24
1 in stock
Haldex is both an industry pioneer and market leader in air brake actuators. Many of the designs and features you have come to expect are Haldex innovations. Haldex offers a complete family of actuators designed and built to the same high standards. The GoldSeal family includes 13 different sizes ranging from the popular 3030 2.5 stroke to the 1624 2.25 stroke and 3636 3.0 stroke. The only truly sealed double diaphragm spring brake on the Market. Ice melts, rain dries, but corrosion never takes a day off. In time, water, de-icers, oils and other elements eat away at your actuators. LifeSeal+ (R) 2.5 and 3.0 stroke models are engineered smart, built strong, and road-tested tough for dependable, durable performance that outlasts ordinary spring brakes.
- Service Chamber, T-09 Clamp Band Kit
| Air Port position | 90 |
|---|---|
| Air Port Threads | 3/8-18 NPTF |
| Available Stroke | 3 in |
| Available Stroke | 76 mm |
| Dimension at Service Clampband | 9.4 in |
| Dimension at Service Clampband | 239 mm |
| Length from mounting bracket to end of Spring Housing | 109 mm |
| Length from mounting bracket to end of Spring Housing | 4.3 in |
| Maximum Pressure | 150 PSI |
| Pushrod Length from face of Service Housing | 10 in |
| Replaces | MA36242 |
| Service Clampband position | 0 |
| Stud Spacing | 120.7 mm |
| Stud Spacing | 4.75 in |
| Prop 65 Applies | Y |
| Prop 65 Short Warning | Cancer & Reproductive |
| Weight | 10.08 lbs |
|---|---|
| Manufacturer |
