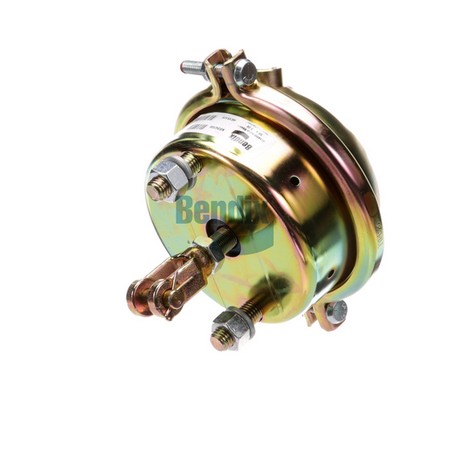

Brake Chamber (S-Cam)
| Push Rod Length (to Yoke Pin Center when Applicable) [IN] | 1.38 in |
|---|---|
| Chamber Type / Size | T20 |
| Clamp Angle | 180deg |
| Clevis / Yoke Arm Bushing Pin Diameter | O .50 IN (O 12.7 MM) |
| Clevis / Yoke Arm Link Pin Diameter | Not applicable to this part |
| Clevis / Yoke Pin Spacing | Not applicable to this part |
| Clevis / Yoke Style | Threaded (Standard) |
| Market Indicator | Aftermarket New |
| Maximum Operating Temperature | 175 degF (79 degC) |
| Minimum Operating Temperature | -40 degF (-40 degC) |
| Mounting Stud Length | 1.47 IN (37.3 MM) |
| Port Angle | 0deg |
| Push Rod Thread / Style | 5/8-18 UNF-2A |
| Service Chamber Joint Type | Double Clamp Band |
| Service Port (11) - Center | 3/8-18 NPT (Plugged) |
| Service Port (11) - Side | 3/8-18 NPT |
| Stroke | 2.50 IN (63.5 MM) |
| Stud Spacing | 4.75 IN (120.7 MM) |
| Stud Thread Size | 5/8-11 UNC-2A |
| Weatherproof | No |
| Weight | 3.63 lbs |
|---|---|
| Manufacturer |
