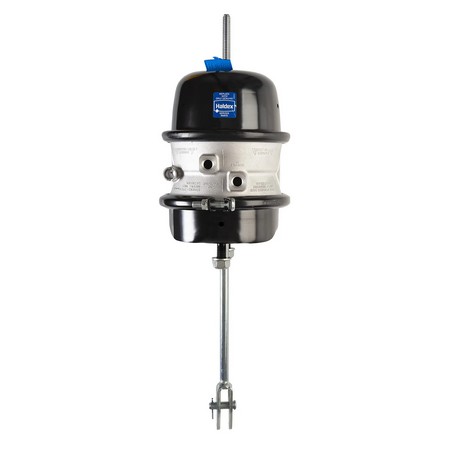

Haldex is both an industry pioneer and market leader in air brake actuators. Many of the designs and features you have come to expect are Haldex innovations. Haldex offers a complete family of actuators designed and built to the same high standards. The GoldSeal family includes 13 different sizes ranging from the popular 3030 2.5 stroke to the 1624 2.25 stroke and 3636 3.0 stroke. The only truly sealed double diaphragm spring brake on the Market. Ice melts, rain dries, but corrosion never takes a day off. In time, water, de-icers, oils and other elements eat away at your actuators. LifeSeal+ (R) 2.5 and 3.0 stroke models are engineered smart, built strong, and road-tested tough for dependable, durable performance that outlasts ordinary spring brakes.
- Anchorlok(R) Spring Brake , Model Types 20S and 2024, T-20 Clamp Band Kit
| Air Port position | 90 |
|---|---|
| Available Stroke | 76 mm |
| Available Stroke | 3 in |
| Dimension at rolled Spring Housing flange | 8.3000000000000007 in |
| Dimension at rolled Spring Housing flange | 211 mm |
| Dimension at Service Clampband | 10.199999999999999 in |
| Dimension at Service Clampband | 259 mm |
| Distance | 11 in |
| Length from mounting bracket to end of Spring Housing | 9.9 in |
| Length from mounting bracket to end of Spring Housing | 251 mm |
| Length of Piggyback | 7.4 in |
| Length of Piggyback | 187 mm |
| Powder Coated | Y |
| Pushrod Length from face of Service Housing | 9.75 in |
| Service Clampband position | 0 |
| Service Housing | 9 gauge steel |
| Stud Spacing | 4.75 in |
| Stud Spacing | 120.7 mm |
| Prop 65 Applies | Y |
| Prop 65 Short Warning | Cancer & Reproductive |
| Weight | 19.63 lbs |
|---|---|
| Manufacturer |
