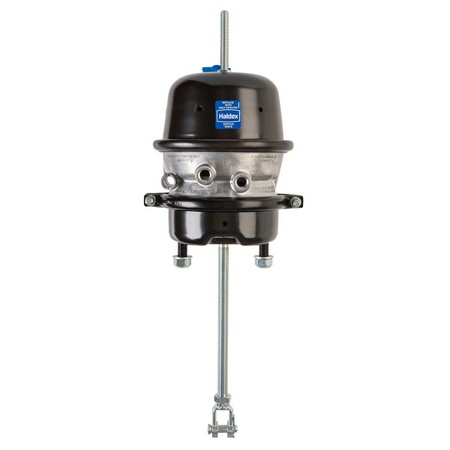

Haldex is both an industry pioneer and market leader in air brake actuators. Many of the designs and features you have come to expect are Haldex innovations. Haldex offers a complete family of actuators designed and built to the same high standards. The GoldSeal family includes 13 different sizes ranging from the popular 3030 2.5 stroke to the 1624 2.25 stroke and 3636 3.0 stroke. The only truly sealed double diaphragm spring brake on the Market. Ice melts, rain dries, but corrosion never takes a day off. In time, water, de-icers, oils and other elements eat away at your actuators. LifeSeal+ (R) 2.5 and 3.0 stroke models are engineered smart, built strong, and road-tested tough for dependable, durable performance that outlasts ordinary spring brakes.
- Aluminum center body is durable, lightweight and corrosion resistant
| Air Port position | 90 |
|---|---|
| Available Stroke | 2.5 in |
| Available Stroke | 64 mm |
| Dimension at rolled Spring Housing flange | 211 mm |
| Dimension at rolled Spring Housing flange | 8.3000000000000007 in |
| Dimension at Service Clampband | 9.4 in |
| Dimension at Service Clampband | 239 mm |
| Length from mounting bracket to end of Spring Housing | 9.3000000000000007 in |
| Length from mounting bracket to end of Spring Housing | 235 mm |
| Length of Piggyback | 6.8 in |
| Length of Piggyback | 172 mm |
| Powder Coated | Y |
| Pushrod Length from face of Service Housing | 10 in |
| Replaces | 2430021 and MA15425 |
| Service Clampband position | 0 |
| Service Housing | 9 gauge steel |
| Stud Spacing | 120.7 mm |
| Stud Spacing | 4.75 in |
| Prop 65 Applies | Y |
| Prop 65 Short Warning | Cancer & Reproductive |
| Weight | 19.7 lbs |
|---|---|
| Manufacturer |
