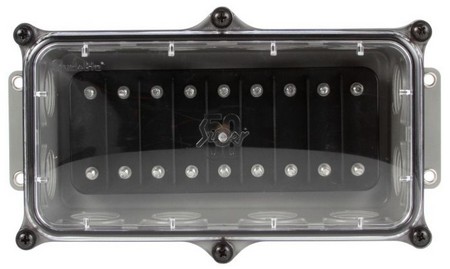

- With 50 percent more harness ports, alleviates the need for multiple boxes, while allowing for the addition of more harness systems and increased lighting needs; Larger box makes it easier to work on internal connections; Clear lid offers easy viewing of connections without having to remove lid, saving time when trying to identify lighting system problems; Dual ''Dog bone'' ground strap feature allows 4 terminals to be common, replacing the need for multiple junction boxes, offering additional cost savings; Silicone gasket on lid helps to eliminate damage from moisture and corrosives within the box, reducing costly repairs; Made of high impact, chemical resistant, approved insulating plastic providing a long service life and eliminating the time and money needed for repair and replacement; Mounted by four eyelet-reinforced holes in base of box for increased durability; Contains 12 pre-tapped holes to accept compression fittings or filler plugs allowing for greater configuration versatility; Uses 50 Series compression fittings or 50830 filler plugs (6 included in kit)
| Housing Material | Plastic |
|---|---|
| Number of Ports | 12 |
| Number of Terminal Connections | 16 |
| Weight | 1.6 lbs |
|---|---|
| Manufacturer |
