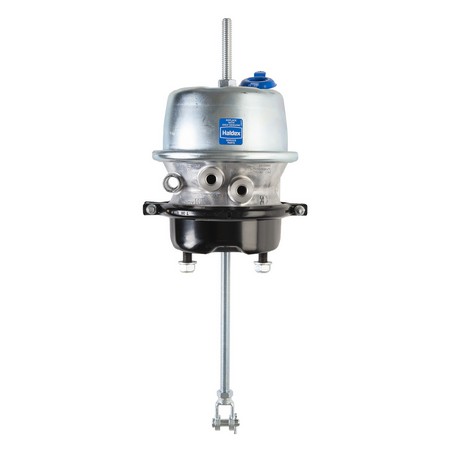

S.S. CHAMBER
- EUCLID INDUSTRIES EGC-3036
- CRANE CARRIER, CCI 050A-0037 equivalent
- HENDRICKSON INTERNATIONAL 08-09-3036 equivalent
- KELSEY-HAYES 104948-01 equivalent
- SPARTAN CHASSIS 100-MM1 equivalent
- KELSEY-HAYES 104948-03 equivalent
44 more numbers
- KELSEY-HAYES 104948-02 equivalent
- GENERAL MOTORS 15562206 equivalent
- BLUE BIRD BODY 1143890 equivalent
- OSHKOSH TRUCK 1539530 equivalent
- HALDEX 1393036001 equivalent
- BLUE BIRD BODY 114908 equivalent
- GENERAL MOTORS 15562207 equivalent
- OSHKOSH TRUCK 110901-C equivalent
- GENERAL MOTORS 15586710 equivalent
- HALDEX 161061 equivalent
- NAVISTAR INTERNATIONAL TRANSPORTATION 1607528C91 equivalent
- HALDEX 160309 equivalent
- HALDEX 161062 equivalent
- HALDEX 161222 equivalent
- HALDEX 162170 equivalent
- HALDEX 160558 equivalent
- GENERAL MOTORS 15605746 equivalent
- GENERAL MOTORS 15605747 equivalent
- HALDEX 162288 equivalent
- HALDEX 161060 equivalent
- HALDEX 161351 equivalent
- HALDEX 161239 equivalent
- NAVISTAR INTERNATIONAL TRANSPORTATION 1607529C91 equivalent
- HALDEX 162046 equivalent
- HALDEX 162390 equivalent
- HALDEX 162776 equivalent
- HALDEX 162567 equivalent
- HALDEX 162614-02 equivalent
- HALDEX 162646 equivalent
- HALDEX 163104 equivalent
- HALDEX 163205 equivalent
- HALDEX 162999-03 equivalent
- HALDEX 162999-02 equivalent
- HALDEX 162670 equivalent
- HALDEX 163062 equivalent
- HALDEX 163201 equivalent
- HALDEX 162999-01 equivalent
- HALDEX 162750 equivalent
- HALDEX 163180 equivalent
- HALDEX 162614-03 equivalent
- HALDEX 163047 equivalent
- HALDEX 162793 equivalent
- HALDEX 163250-L equivalent
- HALDEX 163161-L equivalent
$249.80
Combination - Size 3036
3 in stock
Haldex is both an industry pioneer and market leader in air brake actuators. Many of the designs and features you have come to expect are Haldex innovations. Haldex offers a complete family of actuators designed and built to the same high standards. The GoldSeal family includes 13 different sizes ranging from the popular 3030 2.5 stroke to the 1624 2.25 stroke and 3636 3.0 stroke. The only truly sealed double diaphragm spring brake on the Market. Ice melts, rain dries, but corrosion never takes a day off. In time, water, de-icers, oils and other elements eat away at your actuators. LifeSeal+ (R) 2.5 and 3.0 stroke models are engineered smart, built strong, and road-tested tough for dependable, durable performance that outlasts ordinary spring brakes.
- Aluminum center body is durable, lightweight and corrosion resistant
| Air Port position | 90 |
|---|---|
| Air Port Threads | 3/8-18 NPTF |
| Available Stroke | 64 mm |
| Available Stroke | 2.5 in |
| Dimension at rolled Spring Housing flange | 231 mm |
| Dimension at rolled Spring Housing flange | 9.1 in |
| Dimension at Service Clampband | 259 mm |
| Dimension at Service Clampband | 10.199999999999999 in |
| Grade | 5 |
| Length from mounting bracket to end of Spring Housing | 9.8000000000000007 in |
| Length from mounting bracket to end of Spring Housing | 250 mm |
| Length of Piggyback | 7.3 in |
| Length of Piggyback | 185 mm |
| Maximum Pressure | 150 PSI |
| Powder Coated | Y |
| Pushrod Length from face of Service Housing | 10 in |
| Pushrod Thread | 5/8-18 UNF |
| Replaces | 3036001, 53036001 and MA15452 |
| Service Clampband position | 0 |
| Service Housing | 9 gauge steel |
| Stud Length | 38.1 mm |
| Stud Length | 1.5 in |
| Stud Spacing | 120.7 mm |
| Stud Spacing | 4.75 in |
| Stud Type | 5/8-11 UNC |
| Prop 65 Short Warning | Cancer & Reproductive |
| Prop 65 Applies | Y |
| Weight | 26.36 lbs |
|---|---|
| Manufacturer |
