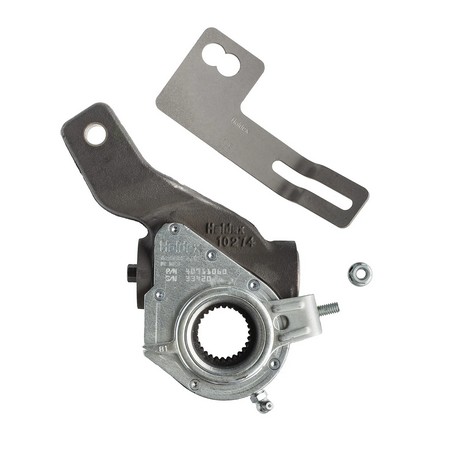

As the very first clearance-sensing brake adjuster, the Haldex AA1 offers customers a higher level of technical efficiency, safety and reliability. It is designed to adjust exactly and gradually when it matters, maintaining a constant clearance between lining and drum, whatever the conditions or driver's braking style. The adjustment mechanism is integrated into a robust, high-quality housing that protects it from knocks, dirt and moisture and assures a long service life even in hostile driving environments. Through its innovative self-setting flexible design, the Haldex S-ABA Automatic Brake Adjuster offers two benefits which revolutionize brake adjuster fitting: a free selection of control arm position and error-free installation. The Haldex S-ABA functions correctly whatever the position of the control arm. Previously a brake adjuster could only function properly with the control arm in one predesignated position. Self-setting means no more time-consuming adjustments during installation to fix the control arm to achieve the correct predetermined running clearance.
- Backed by the industry's longest warranty
| Anchor Bracket Style | Strap |
|---|---|
| Arm Hole Diameter | 0.5 in |
| Arm Length | 6 in |
| Body Angle | 34 |
| Bracket Number | 42710609 |
| Grease Fitting Location | 60deg |
| Grease Fitting Type | 90deg |
| Offset | 1.5 in |
| Pin Size | 0.5 in |
| Spline Count | 28 |
| Spline Diameter | 1.5 in |
| Prop 65 Applies | Y |
| Prop 65 Short Warning | Cancer & Reproductive |
| Weight | 8 lbs |
|---|---|
| Manufacturer |
